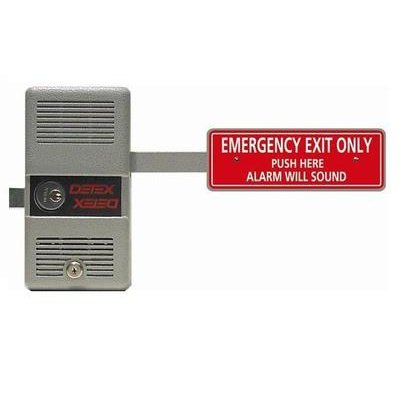

Detex ECL-230D
Only 1 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Product at A Glance
Requires at least one rim cylinder (Cylinder not included)
For operation from both sides of the door, two rim cylinders are required.
Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
ECL-1595 - Cylinder Collar is required for 6 or 7 pin cylinders
Features a 100 decibel alarm, which is powered by a 9-volt battery (included)
Locking and unlocking the deadbolt always arms and disarms the alarm
Resetting the alarm can only be done with a control key
Includes machine and sheet metal screws (Standard)
The lock body is corrosion resistant
Style Alarmed Panic Exit Device
Application Wood, hollow metal, and aluminum doors
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Door width Minimum 20", maximum 36"
Deadbolt Single point - 1" throw, saw resistant
Stile - Maximum - 5-3/4" with ECL-437K strike (standard)
- Minimum - 1-7/8" with ECL-475 Kit (decorative backplate kit)
Finish Grey
Requires at least one rim cylinder (Cylinder not included)
For operation from both sides of the door, two rim cylinders are required.
Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
ECL-1595 - Cylinder Collar is required for 6 or 7 pin cylinders
Features a 100 decibel alarm, which is powered by a 9-volt battery (included)
Locking and unlocking the deadbolt always arms and disarms the alarm
Resetting the alarm can only be done with a control key
Includes machine and sheet metal screws (Standard)
The lock body is corrosion resistant
Style Alarmed Panic Exit Device
Application Wood, hollow metal, and aluminum doors
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Door width Minimum 20", maximum 36"
Deadbolt Single point - 1" throw, saw resistant
Stile - Maximum - 5-3/4" with ECL-437K strike (standard)
- Minimum - 1-7/8" with ECL-475 Kit (decorative backplate kit)
Finish Grey
